Porting CARLA to Apple Silicon

·485 words·3 mins
Table of Contents

Overview
#

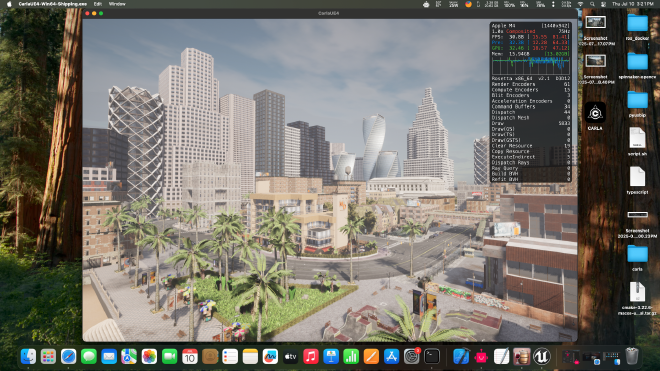

preview

CARLA is an open-source simulator for autonomous driving research. It is designed to be run on Windows and Linux with Nvidia GPUs with no native support for MacOS. With the new Apple Silicon Macs (M-series) becoming more capable in terms of raw power and community support, many researchers (including me) have chosen Macs over Nvidia workstations for their RAM to price ratio. As I am interested in self-driving cars, I wanted to setup CARLA on my Mac. But, after many failed attempts, my dear friend, a mac gamer had got it working. This blog is a guide to run CARLA on M-series Macs.

This has been tested on:

  1. MacBook M1 Pro, 16gb: v0.9.11, v0.9.12, v0.9.13, v0.9.14 worked, v0.9.15+ failed to render graphics.
  2. Mac Mini M4, 24gb: v0.9.11 to v0.9.15 worked with 30-60fps, v0.10.0 ran at 10-15fps

Prerequisites
#

  1. Ensure MacOS is 15.5+, older versions might not support some versions of Carla. (v0.9.12 to v0.9.15 failed in Sequoia 15.2, while v0.9.11 and v0.10.0 ran without any problems)
  2. 16 gigs of RAM is recommended to run Carla v0.9.10+
  3. 24 gigs of RAM for Carla v0.9.15+ and v0.10.0
  4. Older chips(M1, M2) may not be powerful enough to handle newer versions of Carla(v0.9.15+)

Setup
#

  1. Install Winery (now Sikarugir).

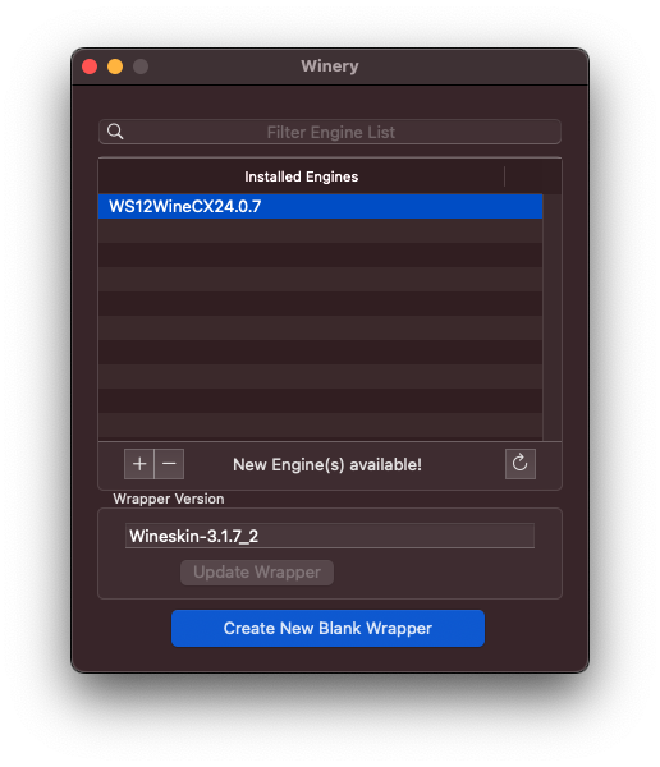

  2. Open Winery and install the latest engine and update the wrapper.
    alt text

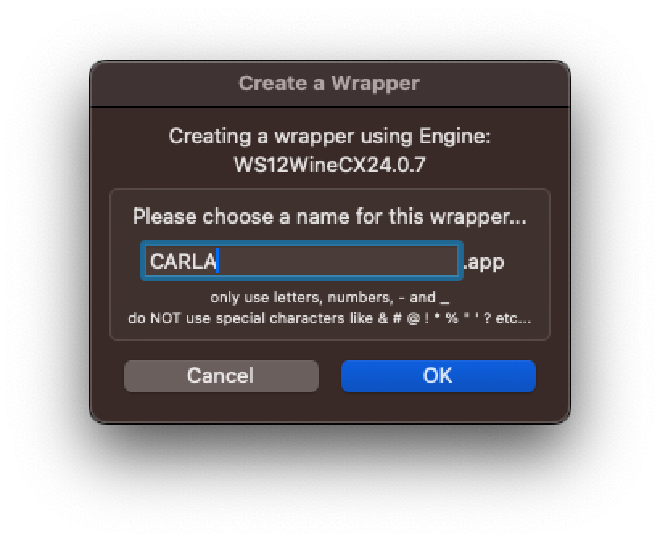

  3. Then create a new blank wrapper.
    alt text

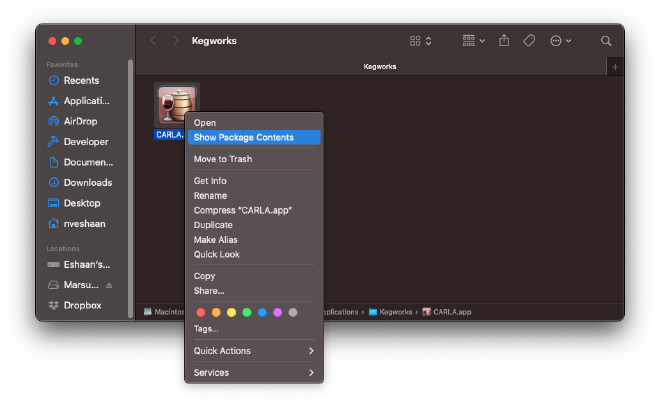

  4. Open CARLA.app in finder and right-click on it to open package contents.
    alt text

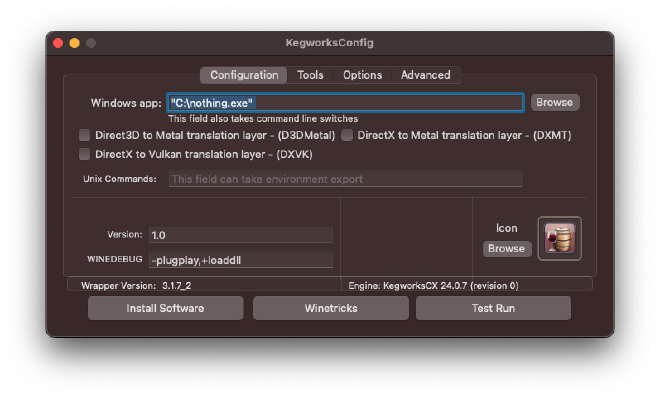

  5. Navigate to Contents/ and open KegworksConfig.app.
    alt text

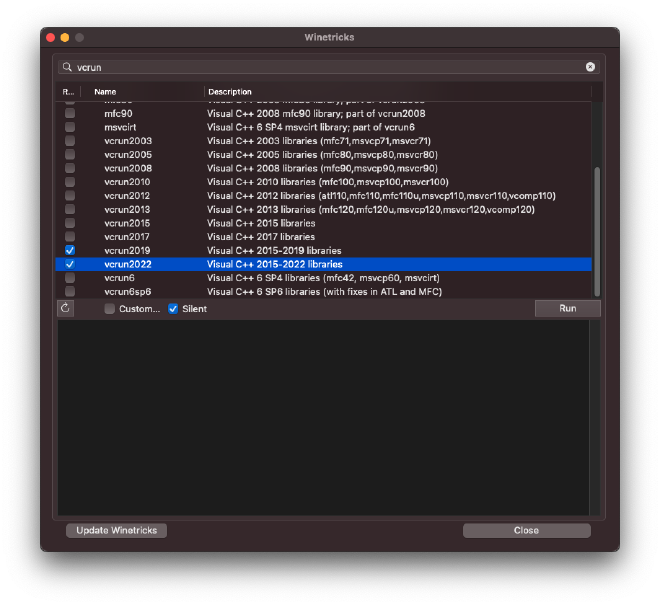

  6. Open Winetricks, search for vcrun and click Run after selecting vcrun2019, vcrun2022. This will install the required Visual Studio packages.
    alt text
  7. After its done, you can close Winetricks.

Installation
#

  1. Download the Windows shipment of Carla with version of your choice from its release page, and extract the folder.
  2. In the KeyworksConfig.app, click on Install Software.
    alt text

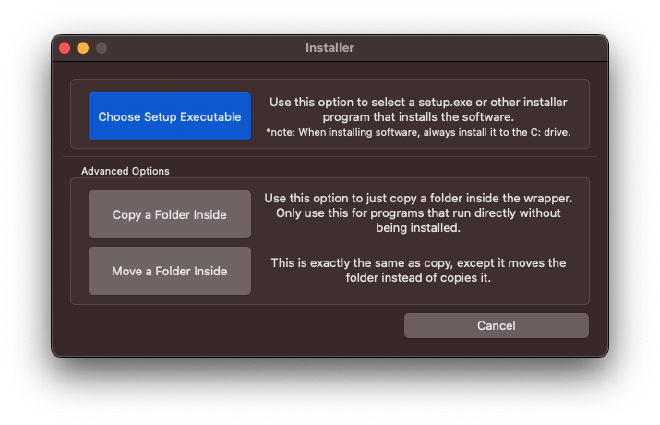

  3. Click Move a Folder Inside, and select the folder you’ve just extracted.
    alt text

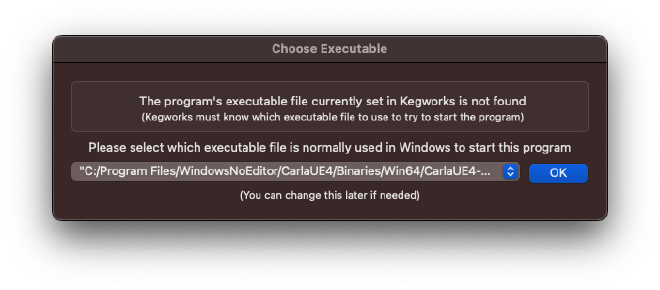

  4. Change the executable file to C:/Program Files/WindowsNoEditor/CarlaUE4.exe and click OK.

Usage
#

  1. Check the D3DMetal option and click on Test Run to see if Carla is working as expected.
    alt text
  2. After the test run, you can close the KegworksConfig.app and launch Carla from CARLA.app like a regular Mac application.

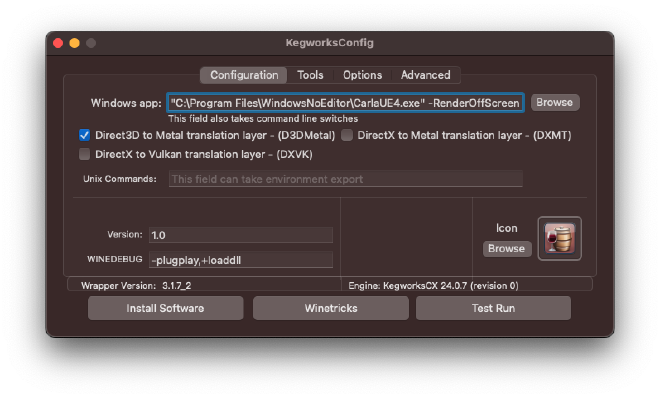

  3. You can add flags like -RenderOffScreen, --ros2, --port, etc. in the Windows app: field.
    alt text

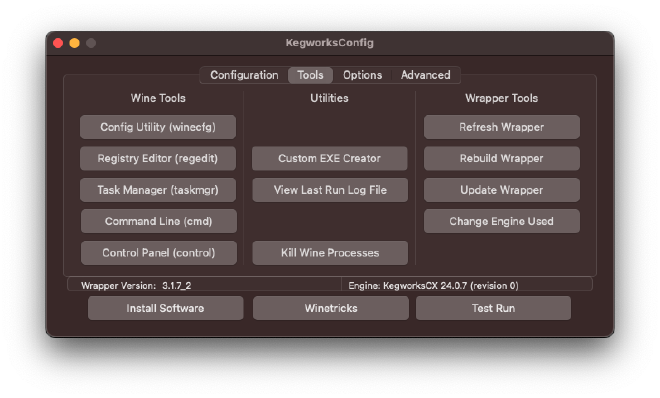

  4. You can access tools like Task Manager, Command Prompt, Control Panel in the Tools window. You can also stop your Carla app (if unexpected behavior occurs or when using -RenderOffScreen) using Kill Wine Processes.
    alt text

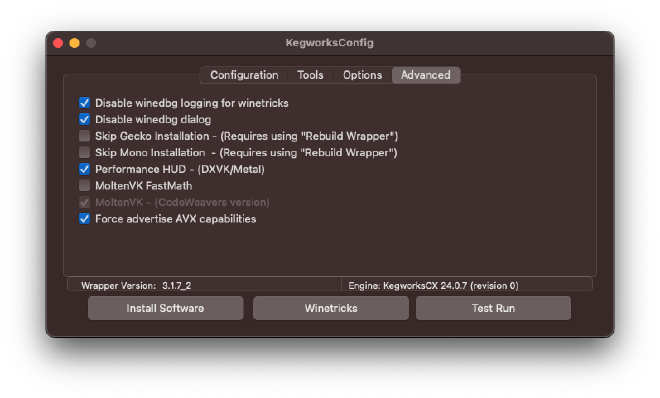

  5. You can enable FPS, GPU, Mem info on Carla window, by checking the Performance HUD option.
    alt text

Conclusion
#

To run the CARLA Python Client, check this discussion on GitHub. This guide is outdated as of 2026, but thanks to the carla community, there are two amazing videos on the discussion page where a contributor walks you through the new steps to setup both the server and the client. The below video shows a demo of Python client in docker container.
